M Expanding Flanged

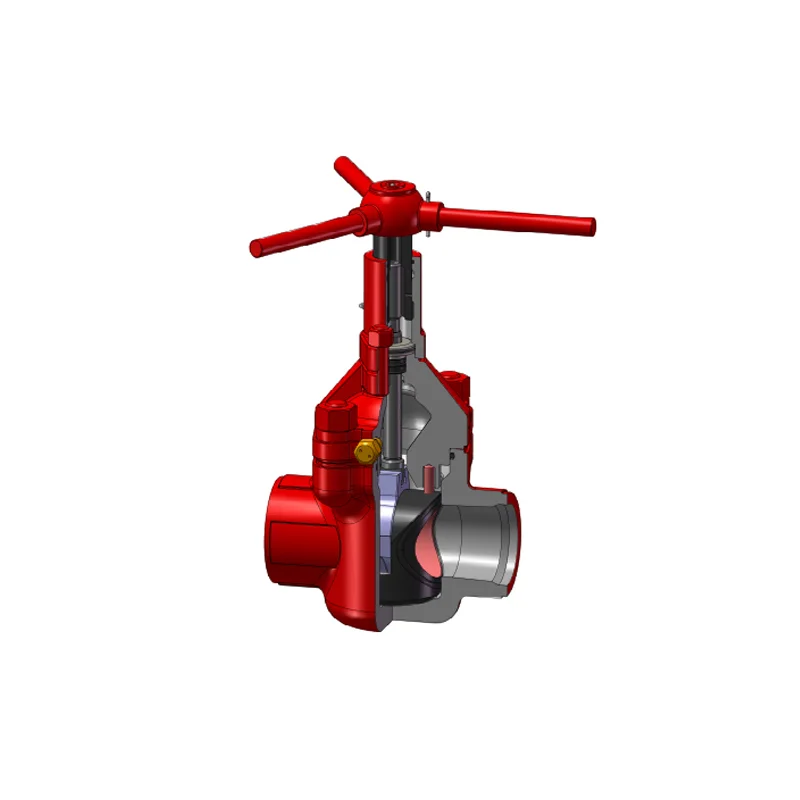

The Leland M expanding gate valve consists of one gate body and related gate segment. The contact surface between are designed to milled V structure. JFM Expanding gate valves are available in sizes 2-1/16” through 4-1/16”, working pressure of 2000 psi through 5000 psi.
Specification
The upper/lower roller thrust bearing minimizes operation torque;
Seats can be lubricated from grease injection fitting to reduce abrasion and promote long life;
Non-rising stem design minimize operation space.
Supply Range
| Products | Description(Type-size-pressure-connection) | Temperature | Performance Material | Specification |
| M Expanding gate valves | EVF1-2-1/16 2M/3M/5M/2LP/2-3/8EUE EVF1-2-9/16 2M/3M/5M/2-7/8EUE EVF1-3-1/8 2M/3M/5M/3-1/2EUE EVF1-4-1/16 3M/5M EVF1-7-1/16 3M/5M | K.L.P.R.S.T.U.V | PR1 PR2 DD,EE,FF-0.5 | PSL1~PSL3 |
