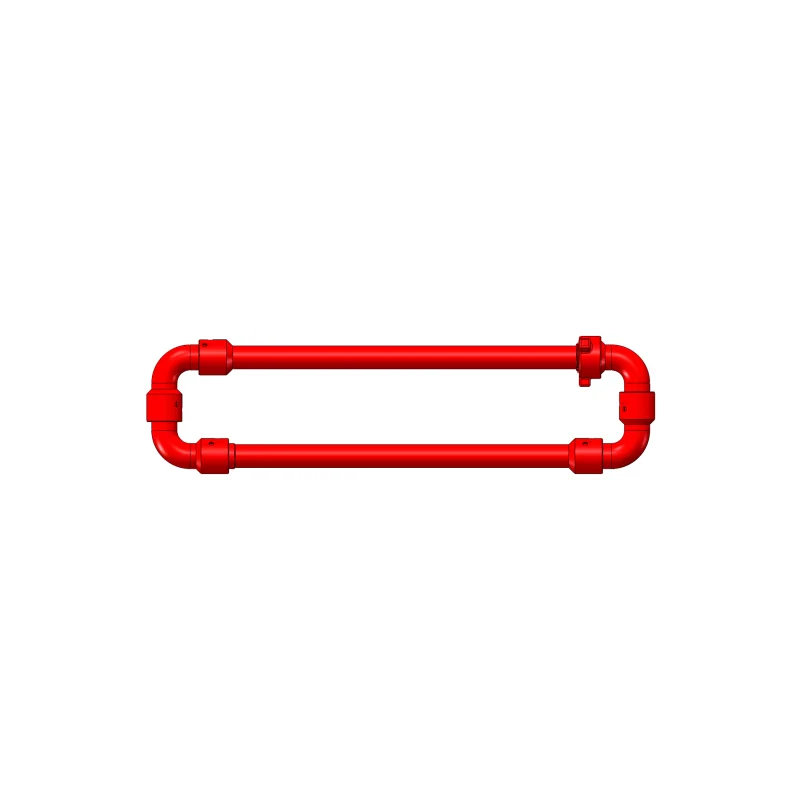

Steel Hose Loop
The hose loop is used in oil field cementing, acid fracturing, etc;
The hose loop is assembled by swivel joint, hammer union and pup joint, can be swiveled in three directions flexibly;
The hose loop can be used in discharge pup joint, transportation pup joint, well testing pup join, well cementing pup joint, and transportation liquid flow under high pressure environment;
The hose loop can be matched with many kinds of swivel joints;
The hose loop has specifications of 2in, 3in, 4in and is adaptive to working under 42MPa(6000psi), 70MPa (10000psi), 105MPa(15000psi);
Hummer union can be connected or disconnected with pup joint. The disconnection is suitable for low pressure pup joint and connection is suitable for high pressure pup joint;
We are able to supply hose loop in each specification, pressure, length (according to expanded size) according to users’ needs.
Specification
● Sizes: 1″ to 3″
● Applications: Suitable for Cementing lines, Water lines,Well Testing Lines, etc.
● Steel Hose Loops are available for Standard and H2S Service.
● Long Radius Cementing Steel Hose Loops are suitable for Pressures up to 15,000psi.
● Short Radius Cementing Steel Hose Loops are suitable for Pressures up to 6,000psi.
● Manufactured 8 ft, 10ft and 12ft length
Supply Range
| Products | Description(Type-size-pressure-connection) | Temperature | Performance Material | Specification |
| K.L.P.R.S.T.U.V | PR1 PR2，DD EE | PSL1~PSL3 |
