Tubing Hanger

Tubing Hanger is a product that is housed in the tubing head, used to
suspend the tubing. These loadbearing devices are installed in the top
bowl of the tubing head. All OE’s tubing hangers are of economical design, sinple and easy to install onsite.

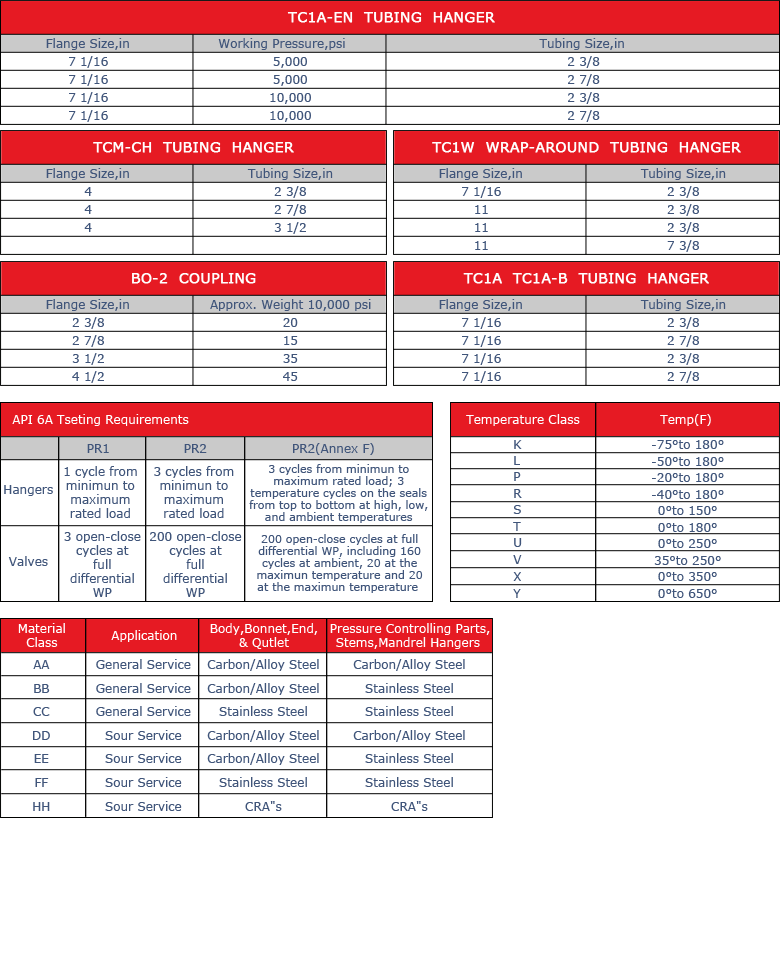

TC1A-EN Tubing Hanger
◆ Threaded mandrel type hanger
◆ Internal type “H” BPV preparation
◆ Reliable compression seal actuated by lockdown screws, controls
annulus pressure during Christmas Tree installation

TCM-CH Tubing Hanger
◆ Threaded mandreal type hanger with control line
◆ Internal type “H” BPV preparation
◆ Reliable compression seal actuated by lockdown screws, controls
annulus pressure during Christmas Tree installation

TC-1W Wrap-Around Tubing Hanger
◆ A slick-joint, wrap-around type packoff
◆ Used with BO-2 coupling and BO-2 adapter bonnet
◆ Compression seal actuated by tubing weight to control annulus pressure

BO-2 Coupling
◆ Used in conjunction with the BO-2 tubing head adapter and the TC-1W tubing hanger
◆ One piece and externally threaded with an ACME thread
◆ Provides internal top and bottom threads
◆ Used for completions that require string manipulation

TC-1A, TC1A-B Tubing Hanger
◆ Threaded mandrel-type
◆ Reliable compression seal actuated by lockdown screws, controls
annulus pressure during Christmas Tree installation
