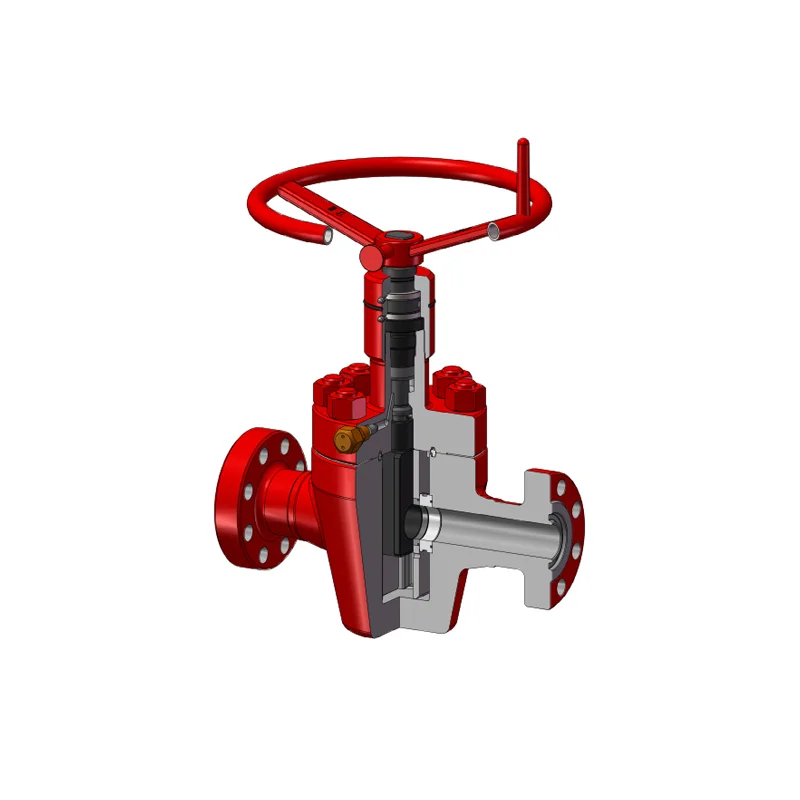

Leland Gate Valve
The Leland gate valve features a non-rising stem with a slab gate, Full-Bore Thru-Conduit Design, Floating Slab Gate and Seats , floating seat ring body bushing design to provide safe dependable service. It is available in flanged or threaded ends in standard bore sizes from 1-13/16” thru 7-1/16” in working pressures of 3,000 psi thru 15,000 psi wp. Seat rings, body bushings, gate, stem are easily replaced in the field, Simple routine maintenance program limits repairs, eases operation, protects against corrosion, and extends service life.
Specification
● Manufactured and Tested in Accordance with API Spec 6A
● Forged Steel Body and Bonnet
● A True Bi-Directional Valve
● Low Operating Torque
● Quick Release Hand Wheel
Supply Range
| Products | Description(Type-size-pressure-connection) | Temperature | Performance Material | Specification |
| FC GATE VALVE | FCF1-1-13/16 10M/15M FCF1-2-1/16 3M/5M/10M/15M FCF1-2-9/16 3M/5M/10M/15M FCF1-3-1/8 3M/5M FCF1-3-1/16 10M/15M FCF1-4-1/16 3M/5M/10M/15M FCF1-5-1/8 10M/15M FCF1-7-1/16 5M/10M/15M | K.L.P.R.S.T.U.V | DD,EE FF,HH | PSL1~PSL3 |
